Weight and dimensions
weight : ≤0.5kg (also said to be 0.3kg)
Dimensions : 233mm x 167mm x 31mm (also known as 100mm x 50mm x 20mm)
Main parameters
processor : PowerPC 603e, 333MHz
memory : 128MB to 512MB
I/O interface : Ethernet, RS-232, RS-485, etc
Working voltage : +5V DC (also known as 24VDC, 48VDC)
power consumption : ≤20W
Operating temperature : -20°C to +65°C (also known as -40 °C to +85 °C)
Function and application
program execution : Execute the control program written by the user.
data processing : the collected data are processed, such as filtering, analysis, calculation, etc.
communication : communication with other devices, such as sensors, actuators, upper computers, etc.
control function : PID control, sequence control, motion control and so on.
industrial application : suitable for process control, discrete control, motion control and other industrial control applications.

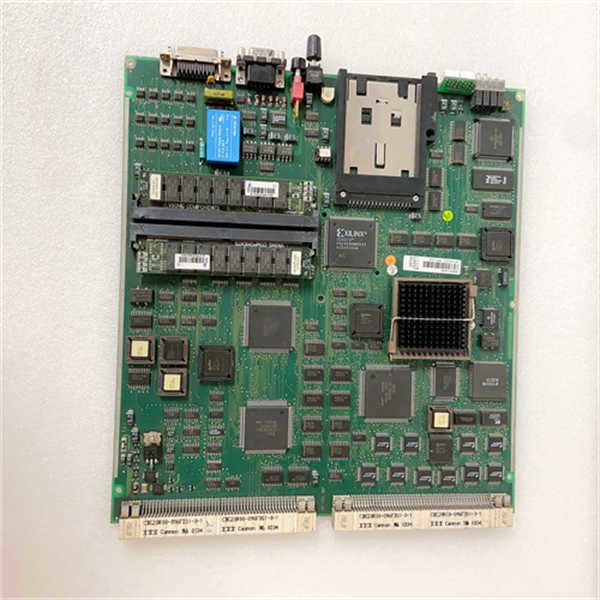

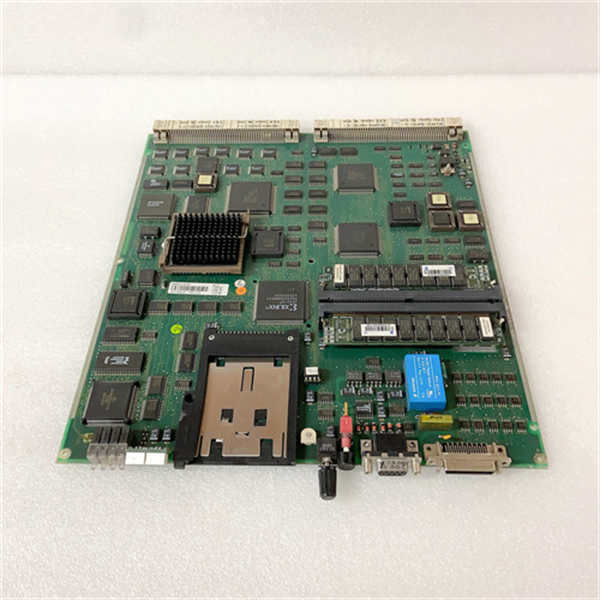

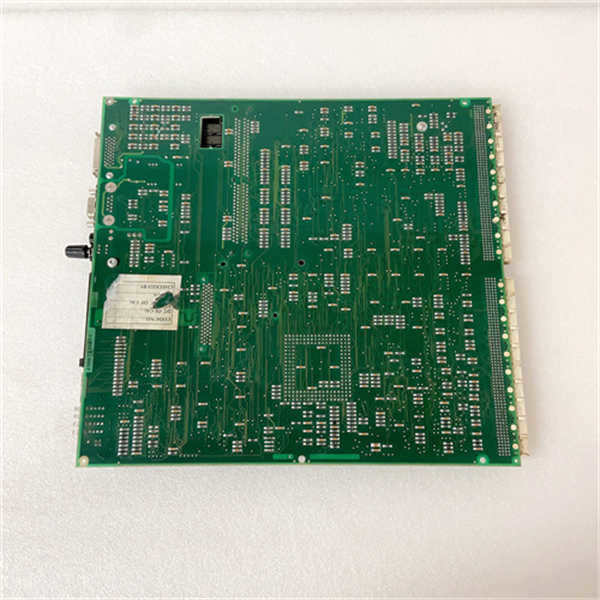

The PM511V16 is a powerful, easy-to-use processor module from ABB that meets the needs of a wide range of industrial control applications. For more information, you are advised to consult ABB’s official documentation or contact its technical support department.
