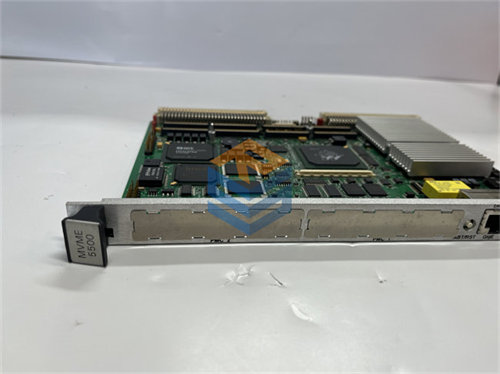

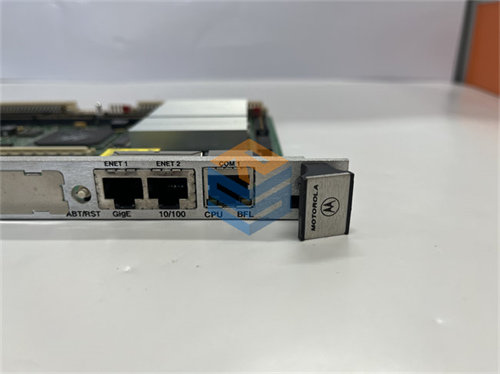

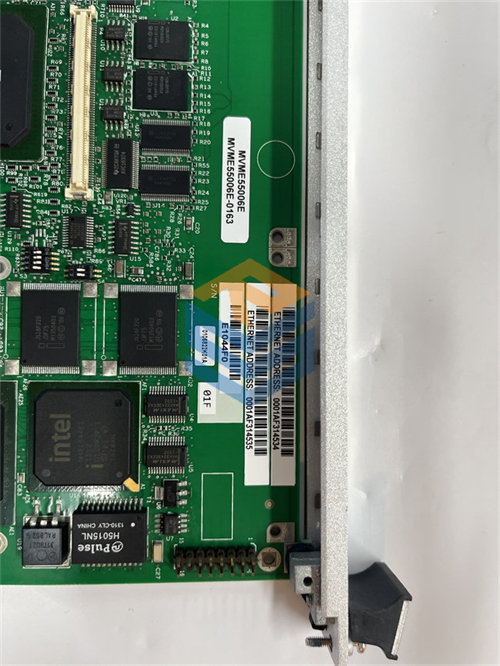

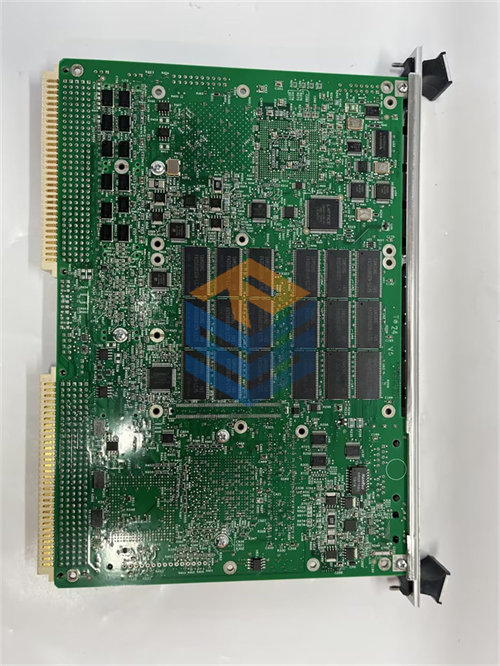

MOTOROLA+MVME55006E-0163R

Description

The MOTOROLA MVME55006E-0163R is part of Motorola’s MVME5000 series, which is a line of embedded computing modules designed for rugged, high-performance applications. These modules were widely used in industrial control systems, particularly in programmable logic controller (PLC) environments. The MVME55006E-0163R is typically used in the context of automation and process control, integrating embedded computing for real-time applications.

Product Name:

MOTOROLA MVME55006E-0163R DCS PLC Module

Product Description:

The MVME55006E-0163R is an embedded, high-performance processor module designed to provide control and data acquisition functionalities. It features a PowerPC processor and is equipped with a range of I/O and communication interfaces to allow seamless integration into industrial systems. This module is typically employed in Distributed Control Systems (DCS) or as part of an industrial control setup in automation and PLC applications.

Key applications include process control, robotics, machinery control, and other embedded systems that require real-time computing capabilities.

Product Parameters and Specifications:

• Processor:
  • Processor Type: PowerPC (specific model varies based on configuration)
  • CPU Speed: Typically, 400 MHz (varies based on specific product configuration)
  • Caches: L1 and L2 caches for improved performance
  • Floating Point Unit (FPU) for high-precision computations
• Memory:
  • RAM: 128 MB (typically, can vary by configuration)
  • Flash Storage: Typically 32 MB (configurable)
• I/O Ports:
  • Multiple serial ports (RS-232/RS-485)
  • Ethernet interfaces (Fast Ethernet 10/100)
  • 2 or more USB ports (depending on configuration)
  • PCI slots (allow for expandability)
• Communication Interfaces:
  • Ethernet for network connectivity
  • Serial ports for control and monitoring tasks
  • Optional fieldbus connections (e.g., Profibus, Modbus, etc.)
• Form Factor:
  • 6U VME (Versa Module Eurocard) format, which allows it to be easily integrated into VME-based systems.
• Power Supply:
  • Typically operates on 5V DC or 3.3V DC, depending on configuration.
• Operating System:
  • Supported OS: VxWorks, Linux, or custom real-time operating systems designed for embedded applications.
• Software:
  • The module comes with support for real-time software frameworks like VxWorks, which is commonly used in industrial control applications.
• Environmental Specifications:
  • Operating Temperature Range: Typically 0°C to 70°C (can vary depending on model and configuration)
  • Storage Temperature Range: -40°C to 85°C
  • Humidity: Relative humidity typically in the range of 5% to 95%, non-condensing
• Reliability and Durability:
  • • Designed for high-reliability and longevity in industrial and mission-critical environments.
    • Fanless design to reduce failure points
